Name:Radar Speed Measurement
Model:GL-TR01H
Brand:固力宝盾
Parameters:
一, Camera Parameters:
1. Pixel: Built-in 4 million pixel road-specific license plate capture device, capable of recognizing license plates with speeds up to 80 miles per hour;
2. Built-in foreign algorithms: Can recognize license plate numbers composed of ABC and 123 type characters;
3. Direction: Can recognize the license plates at the front of the vehicle, the rear of the vehicle, and both simultaneously;
4. Number of lanes that can be recognized: 1-2 lanes;
5. Recognition rate: Over 99.7%, minimum recognition capture interval: < 40ms;
二,Speed measurement radar parameters:
1. Built-in flat-panel narrow-beam 24.15GHz radio frequency radar, with a small angle and accurate positioning
2. Speed measurement range: 1 - 250 km/h,
3. Lane coverage: 1 - 4 lanes
4. Detection distance: Large vehicles not less than 250m, small vehicles not less than 200m
5. Communication interface: 485 communication
6. Speed measurement error: ±5 kilometers per hour

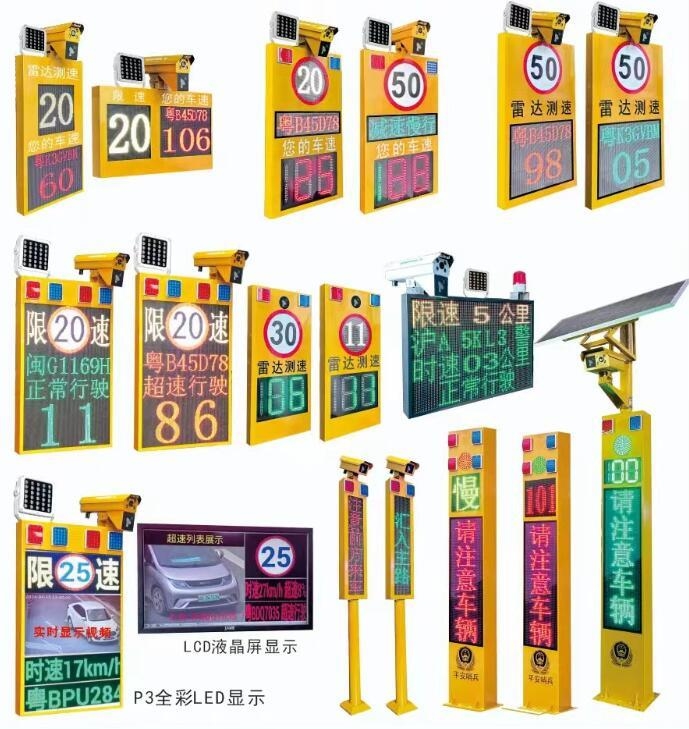

三,Display screen parameters:
1. Speed limit value: Apply speed limit reflective stickers;
2. Information screen, uses P5 high-brightness three-color outdoor screen, displays license plate, vehicle speed, speeding, normal, etc. text; can display the license plate number completely at once;
3. When speeding, the entire screen displays red text with the license plate, vehicle speed, and speeding information, and provides sound and light alarm (optional), not speeding, green display shows license plate, vehicle speed, and normal driving.
4. Outer dimensions: 955mm * 530mm * 105mm, information screen size: 480 * 320mm
四,Other
1. Working Voltage: DC12V; Overall Power: 45W; Power-saving Mode: Approximately 40W 2. Operating Environment Temperature: -30℃ -- 70℃, Relative Humidity: < 95%
3. Installation Method: Screen Body: Wall-mounted/ Side-mounted/Movable Bracket; Liwei Integrated Video Display: Can be independently installed on the cross-arm or fixed above the screen body.
